CR12®
Set up your complete field with CR12®, the latest display featuring the powerful CRX operating software. The CR12 is your extensive field planner, allowing you to set details such as A-B lines and reference lines from the field boundary. Then, you can set up your full field, including multiple headlands and spray tracks with different working widths. As you apply, CR12’s control unit controls your implement, giving you full command of your operation.
- 12.1-inch capacitive touchscreen display.
- Simple, customizable user interface.
- Offers repeatable accuracy.
- Controls up to 105 virtual sections.
- Map-based navigation.
- Boundary and guidance line options, including straight A-B, Pivot, Contour, and Last Pass guidance.
- Controls up to 5 products.
- Single and multiple variable-rate application (VRA) available.
- Slingshot® file transfer, remote support, and over-the-air software updates.
- Easy system backup and recovery.
- ISOBUS Universal Terminal (UT) and Task Controller (TC) capabilities.
CRX Operating Software
The powerful CRX operating system user interface features easy job set-up, fewer touches, and greater efficiencies, empowering the user with extraordinary data management capabilities. It boasts a simple widget concept, easily accessible settings, and ISO Universal Terminal and Task Controller capabilities.
![](https://agricar.co.uk/wp-content/uploads/2024/03/Raven-CR12-1621552535.jpg?v=1713896221)
CR7®
Raven’s lightest and most cost-efficient display, CR7®, is intuitive and easy to use. The CR7 is a 7-inch lightweight field computer with customizable in-job layouts. A simple widget concept, easily accessible settings, and ISO Universal Terminal (UT) and Task Controller capabilities make this mighty unit an affordable plug-and-play system.
- Simplified, customizable widget layout.
- Ability to access settings page from inside a job.
- Map-based navigation.
- Auto field boundaries keep you organized automatically.
- Interactive field/job list and map view.
- Slingshot® ready for file transfer and remote support.
- Compact, low-profile design
- ISO Universal Terminal and Task Controller functionality available.
- Straight A-B, A plus heading, pivot, contour, and last pass guidance.
- Multiple language support and customizable units.
![](https://agricar.co.uk/wp-content/uploads/2024/03/Raven-CR7.jpg?v=1713896222)
RS1 Receiver
RS1 is a high-powered guidance and connectivity system that combines these three functionalities into one intuitive, easy-to-use unit:
Autosteer: Steers the machine so the operator can focus on the operation.
GNSS (including GPS) and RTK: Helps guide the machine’s travel path.
Slingshot® Connectivity: Utilizes compatibility with Viper 4+ for remote job support and analysis of operational efficiencies. Provides unrivaled high-speed wireless connectivity, vehicle tracking, uninterrupted data transfer, and industry leading RTK corrections.
Highly accurate at speeds up to 29 mph (46.7 km/h), RS1 can be moved wherever you need it — from tractor to sprayer to spreader. It provides multiple methods of system connectivity, including cellular, Wi-Fi, or ethernet, and gives you the power to focus on other responsibilities in the cab.
- The industry’s most accurate steering system, with RTK sub-inch accuracy.
- Geared for a wide range of terrain with enhanced steering performance and 3D rugged-terrain compensation.
- Steering auto-adjusts to keep crops safe.
- Allows faster coverage with better accuracy.
- Easy to transfer from machine to machine.
- Pre-set profiles automatically transfer between machines.
- No reprogramming when switching out the unit.
- Remote performance monitoring and support through Slingshot®.
- Compatible with both ISO Steer Ready and Raven Aftermarket Steering Controllers.
- Wide temperature range for inertial sensors (-40°F/C to +150°F/70°C).
![](https://agricar.co.uk/wp-content/uploads/2024/03/raven_rs1_600px_02.jpg?v=1713896216)
Reliable, Repeatable Signal
Raven’s high-performance Global Navigation Satellite System (GNSS) receivers provide highly accurate, reliable GPS and satellite positioning for your precision technology. Add a truly repeatable signal to your precision agriculture applications.
700S™
GLONASS and Autonomous dual-frequency GL1DE™ technology and can be upgraded to GS Pro or RTK sub-inch accuracy to enhance your precision technology suite.
- High performance dual-frequency receiver
- Sub-meter pass-to-pass accuracy
- Full scalability for enhanced accuracy
- Autonomous dual-frequency GL1DE, SBAS, GS, GS Pro, GS-Lite, and RTK
- Simple and fast setup
- Seamless integration
- Magnetic mount
- RTK-L and RTK Pro capable
Upgrading to Satellite GS Pro or RTK corrections will enhance the performance of your steering system, variable rate applications, planter and seeder controls, AccuBoom™ section control, and Hawkeye® nozzle control. Unlock full functionalities by upgrading to GS, GS Pro, GS-Lite or RTK corrections.
![](https://agricar.co.uk/wp-content/uploads/2024/03/700S.jpg?v=1713896230)
Reliable, Repeatable Signal
The 500S features a simple setup and quick convergence time, tracking GPS, GLONASS, Galileo, and BeiDou for improved strength in any environment. Fixed or magnetic mounting options make it ideal for portable and dynamic applications.
500S™
GLONASS and Autonomous dual-frequency GL1DE™ technology and can be upgraded to GS Pro or RTK sub-inch accuracy to enhance your precision technology suite.
- Quick convergence time
- Sub-meter pass-to-pass accuracy
- Ability to shut down a device in a static position for any extended period
- Quick response positioning enables the customer to get to work faster with confidence.
- Seamless integration
- Supports GS-Lite and GS
- Compact, low-profile design
- Fixed or magnetic mounting options
- Durable enclosure
![](https://agricar.co.uk/wp-content/uploads/2024/03/500S.jpg?v=1713896229)
DirecSteer™
Simple, Silent, and Powerful Autosteer
Straight-forward Stress-free Steering, Powered by Raven
DirecSteer is Raven’s most intuitive retrofit autosteer solution for tractors and self-propelled farm machines. Its electric drive packs high torque and silent operation into a cost-competitive, easy-to-install unit for all equipment brands. DirecSteer is a smart motor-based solution with built-in intelligence. Electrical current and torque are measured and controlled internally.
- High-torque electric-drive motor.
- Easy to install and transfer between machines.
- Silent operation.
- Scalable from sub-meter to sub-inch precision.
- Consistent in all field conditions.
- Allows for manual steering.
- Compatible with all major equipment brands.
- Affordable solution that drives you forward on your Path to Autonomy.
Build Your Customized Raven CRx Guidance Kit
Experience a new era of automated steering excellence today!
The Raven CRx Guidance Kit caters to customers seeking a high performing automated steering system and those who want a common steering experience on multi-branded equipment. With its hydraulic-like performance, fast line acquisition, desired accuracy, simple installation and intuitive operation, the Raven CRx Guidance Kit is the key to maximizing productivity and efficiency in your operations.
Build your customizable solution by picking one from the following categories:
![](https://agricar.co.uk/wp-content/uploads/2024/03/Direcsteer-Kit-Image.png?v=1713896217)
Implement Steering
Complete Implement Control in Any Terrain
- Aligns your tractor and implement on the same guidance line.
- Increases productivity in repeated field operations, performed with unparalleled sub-centimeter accuracy.
- Reduces crop damage in high-quality vegetables and organic crops.
- Easily integrates with all implements.
- Provides all-terrain consistency.
- ISOBUS capable — works on any screen with ISOBUS SC1 user terminal.
- Compatible with third-party ISOBUS connections.
- Not affected by uneven loads.
- The only hardware-plus-software solution from the leader in high accuracy steering.
- Neat, streamlined construction.
- The most precise performance through varying soil conditions, uneven loads, or hilly terrain.
- Dependable solution eliminates crop damage caused by steering errors or narrow row spacing.
- Suitable for all types of machines.
![](https://agricar.co.uk/wp-content/uploads/2024/03/raven-Implement-Steering-1024x682.webp)
INTELLISTEER™
Integrated Steering
IntelliSteer is a fully integrated New Holland designed and developed Automatic Steering System. It is the ultimate guidance solution which offers complete machine direction control at the touch of a button. Uses a single integrated display with the IntelliView™ IV for machine functions, auto guidance, mapping and implement control. The T3™ Terrain Compensation system uses sensors to calculate and correct the roll, pitch and yaw of the machine to help minimize skips and overlaps in areas with rolling terrain and rough ground.
Available Factory Fit Or Retrofit Package
Available from the factory or as a retrofit package, the IntelliSteer™ system maximizes productivity and efficiency to optimize your yields and to increase your profits. All-Makes packages also available that can be integrated into most brands and models of equipment. IntelliSteer is available with integrated factory installed IntelliSteer™ auto guidance on T6, T7, T8, T9, CX & CR Series Combines.
![](https://agricar.co.uk/wp-content/uploads/2024/03/nh-392-receiver-overview.jpg?v=1713896245)

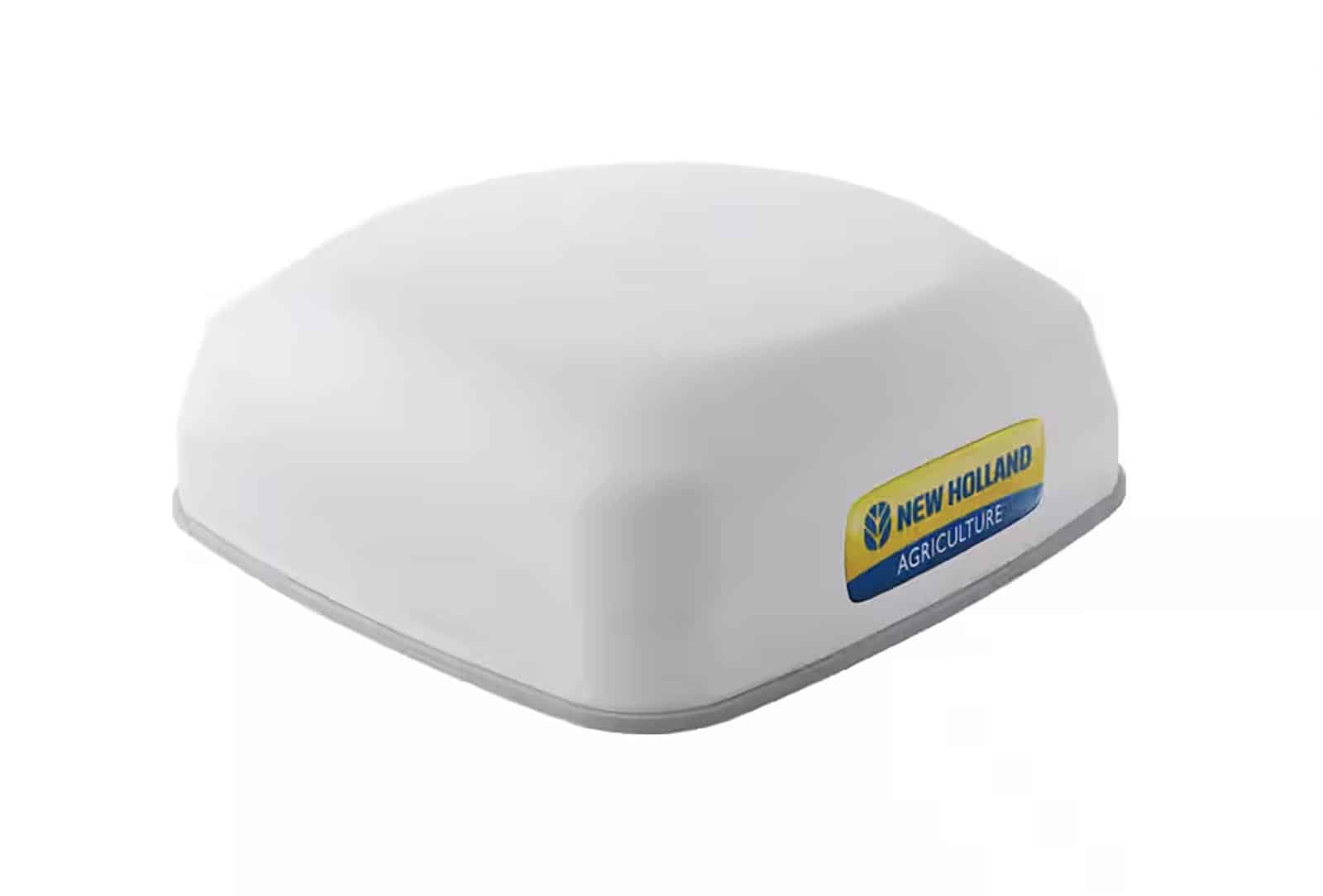

NH 392 RECEIVER
INTELLIVIEW™ IV DISPLAY
PLM CYGNUS™
INTELLIVIEW™ 12 DISPLAY
CropXplorer
The CropXplorer Basic measures the sunlight reflected by plants.
The optimum application rate for the current plant stock is calculated and transferred to the application unit. All data is transferred to PC using a USB stick. This is where the evaluation and documentation are carried out using the online application ISARIA CONNECT.
![](https://agricar.co.uk/wp-content/uploads/2024/03/CropXplorer-Tractor-Graphic-1024x577.jpg?v=1713896133)
Two variables for maximum benefit
![](https://agricar.co.uk/wp-content/uploads/2024/03/CropXplorer-grass-image.jpg?v=1713896129)
![](https://agricar.co.uk/wp-content/uploads/2024/03/Open-Day-49-webcrop-1024x1024.jpg?v=1713896131)
![](https://agricar.co.uk/wp-content/uploads/2024/03/FieldXact-Brochure-Image.jpg?v=1713896237)
AGXTEND
FieldXact sensor is an all in one device to measure between the plants multiple important parameters.
FieldXact is not just a weatherstation BUT a full agronomic SOLUTION to base your decisions on ultra local measurements.
![](https://agricar.co.uk/wp-content/uploads/2024/03/FieldXact-Brochure-2-763x1024.jpg?v=1713896236)
![](https://agricar.co.uk/wp-content/uploads/2024/03/FieldXact-Brochure-SCreenshots-1024x517.jpg?v=1713896233)
AGROSCORES
DISEASEXPERT
SPRAYXPERT
